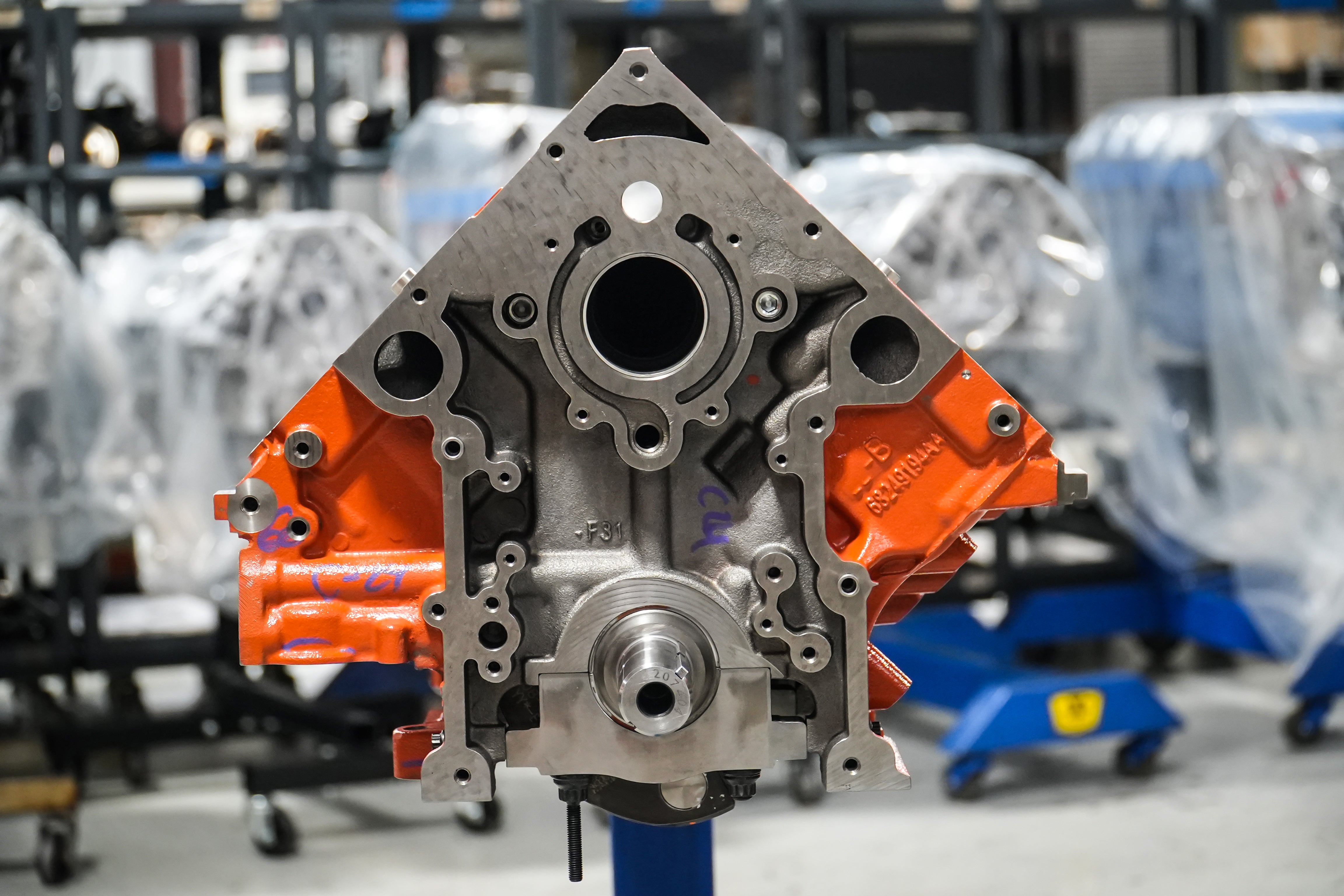

GEN III HEMI 426" SHORTBLOCK BGE 1500 HP
GEN III HEMI 426" SHORTBLOCK BGE 1500 HP
GEN III HEMI 426" SHORTBLOCK BGE 1500 HP
GEN III HEMI 426" SHORTBLOCK BGE 1500 HP
GEN III HEMI 426" SHORTBLOCK BGE 1500 HP

GEN III HEMI 426" SHORTBLOCK BGE 1500 HP

Sale price$10,499.00

Our already proven rotating assembly for the GEN III Hemi is now being fitted with a BGE Hemi block! This LME built shortblock is a proven combo for reliability our Hemi enthusiast deserves!



Displacement: 426" Bore: 4.100"
Proven Power Rating: 1500 HP Stroke: 4.050"
Compression Ratio: 10.5:1 Rod Length 6.200"
Cylinder Head Compatibility: 6.2 or 6.4 Oil System Type: Wet
Block: BGE Hemi Block
Crankshaft: Callies 4340 Compstar 8 Counterweight w/ LME Blueprinting Process
Connecting Rods: Wiseco Boostline Connecting Rods
Pistons: Manley 4.100 Platinum Series
Wrist Pins:  Tool Steel Heavy Wall
Ring Pack: Manley Ring pack
Bearings: Clevite H-Series Main & Rods
Main Studs: ARP



LME Standard Shortblock Blueprinting Process:

  • Block is fully deburred & inspected for flaws

  • Cylinders diamond honed with torque plates for optimal clearance per application

  • Crankshaft journals indexed & trued to exact tolerance

  • Optimal cylinder geometry achieved with diamond hone and surface finish verified with profilometer

  • Chamfered oil holes for improved oiling to bearings

  • Cylinders machined for rod clearance per application

  • Crankshaft journals polished to 2 Ra or better surface finish

  • Block and components meticulously deburred & cleaned after machining process

  • Crankshaft balanced within ¼ oz-in tolerance

  • All five main bearings & all eight rod bearing clearances measured and adjusted for application

  • Connecting rod housing bores checked & adjusted for optimal roundness & size

  • Ring are precision file fit per application

  • Piston pin bores measured & adjusted for application

  • Cam bearings installed and test cam fitted to ensure smooth rotation

  • Block aline honed and set to low of spec for maximun bearing crush

  • All oil galley plugs and dowel pins installed

  • Deck surfaces machined perpendicular to mains & deck height set for optimal quench

  • Meticulous final assembly of shortblock

  • Cylinders bored (when applicable) on 4 axis CNC perpendicular to mains giving you a true 90o  V8

  • All tolerances, clearances, machining specs, and part numbers are recorded and documented in build sheet
