Sale price$4,495.00
INTAKE VALVE:
EXHAUST VALVE:
SPRING OPTION:

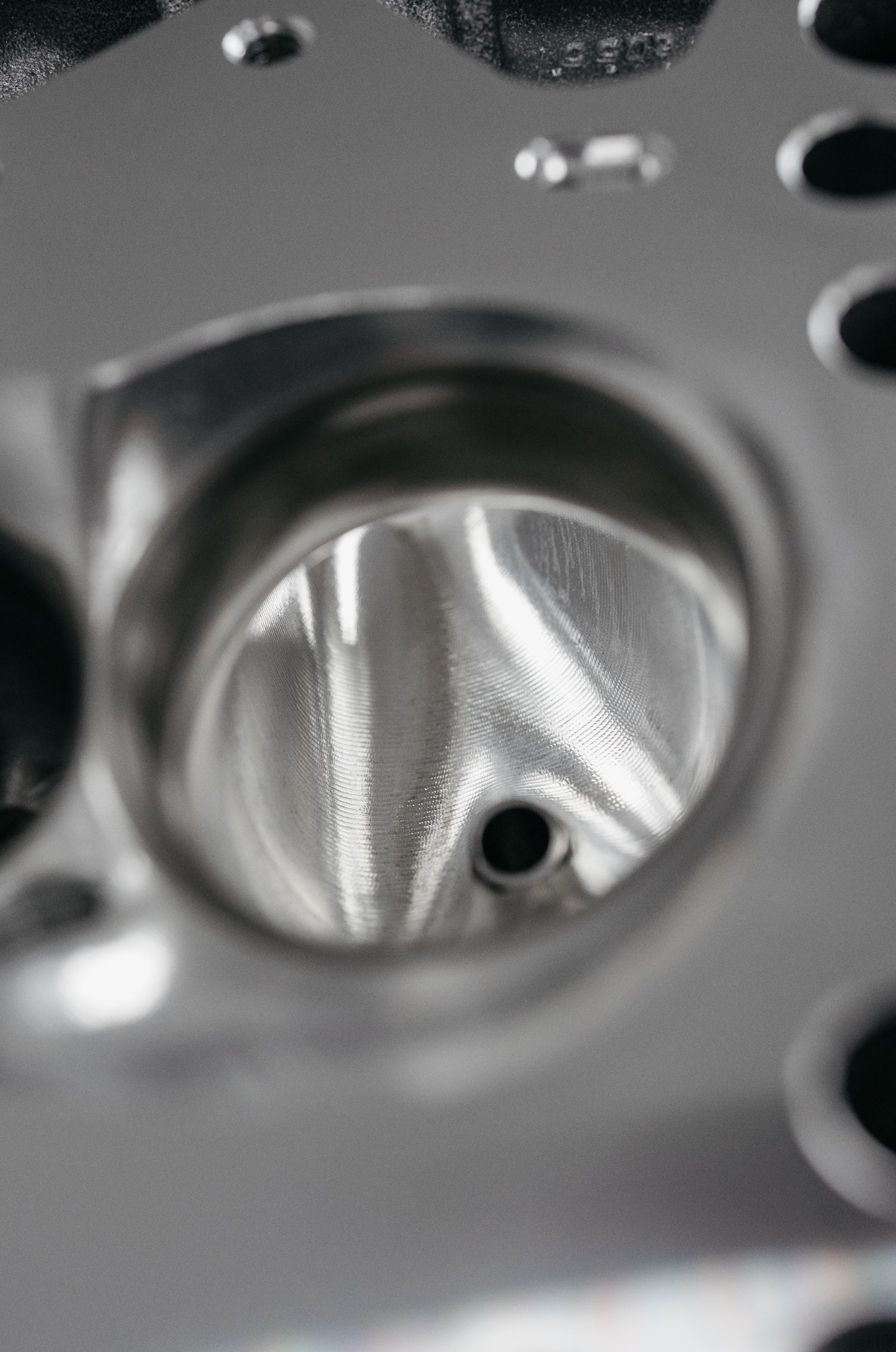

Our friends at BTR did a fantastic job getting a set of LT1/LT4 valves to fit in a cathedral port head. This head casting took years to develop. After receiving these castings our cylinder head R&D department got to work making a port that demolished any cathedral port we have done to date! We are happy to offer these heads completely done and assembled to your specifications. These are in stock and will ship in 2-3 days!

CHAMBER SIZE 61CC

INTAKE RUNNER VOLUME 250CC

EXHAUST RUNNER VOLUME 89CC

3.900" BORE 4.000" BORE  4.100" Bore
LIFT INTAKE EXHAUST INTAKE EXHAUST INTAKE EXHAUST
.100 79 69 82 69 83  70
.200 151 129 155 128 154 129
.300 221 175 233 178 237 179
.400 278 212 295 218 301 222
.500 330 230 341 239 350 245
.600 356 241 369 248 375 257
.650 363 245 376 251 355 260
.700 370 250 351 255 352 262
.750 341 254 351 258 350 265
.800 342 257 350 260 352 266
